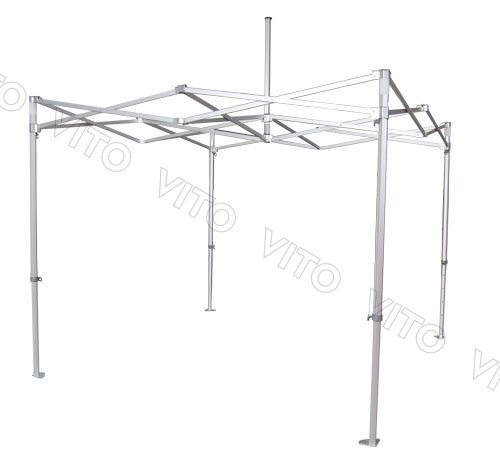

Express tents on aluminium frame Lux
Lux Express tents on the aluminum rack are the product of the highest quality. Tents of this type are well-proven, durable and easy to use constructions.
We have introduced tents in sizes 3×3,4,5×3 and 6×3.
The cover of the tent is made from double impregnated polyester fabric with a weight of 230 g. We offer tents in a wide range of colours and we also offer advertising tents.
The basic set includes the following:
- frame
- sheathing (roof + 3 walls)
- frame cover
- cover bag
Stand specification of the frame:
- the outer leg of the cube – 50 mm (wall thickness 2 mm)

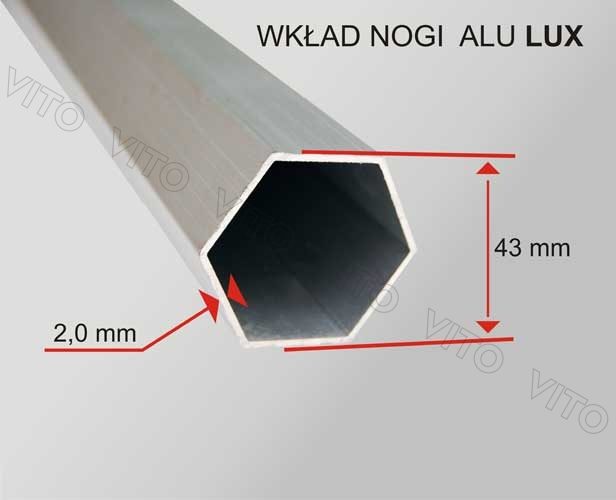

- cube leg insert – 43 mm (wall thickness 2 mm)

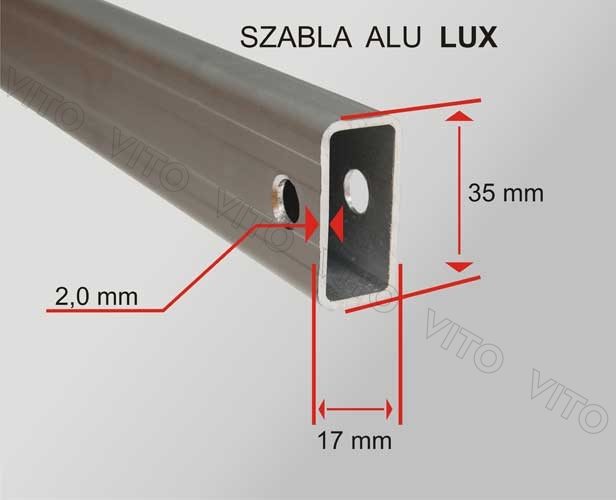

- profile in the roof (sabre) 17 x 35 (wall thickness 2 mm)
Express tents on the Lux aluminium frame – parameters
| Available sizes |
Frame weight | Sheath weight | Height of wall Overall amount |
Size after folding |
| 3×3 m | 29 kg |
9 kg |
200/330 cm |
33x33x157 cm |
| 3×4,5 m | 38 kg |
11 kg |
200/330 cm |
33x38x157 cm |
| 3×6 m | 51 kg | 14 kg |
200/330 cm |
33x57x157 cm |
| 4×6 m | 45 kg |
18 kg | 210/230/390 cm |
33x43x205 cm |
| 4×8 m | 63 kg |
20 kg |
210/230/390 cm |
33x55x205 cm |
| 5×5 m | 71 kg | 24 kg | 210/325 cm |
55x55x160 cm |
| 6×6 m | 105 kg |
30 kg |
210/410 cm |
58x58x157 cm |

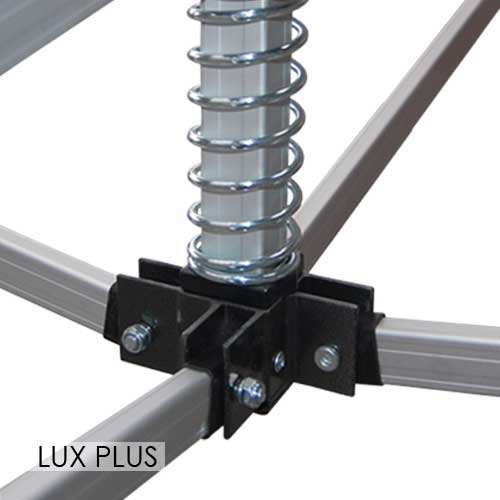

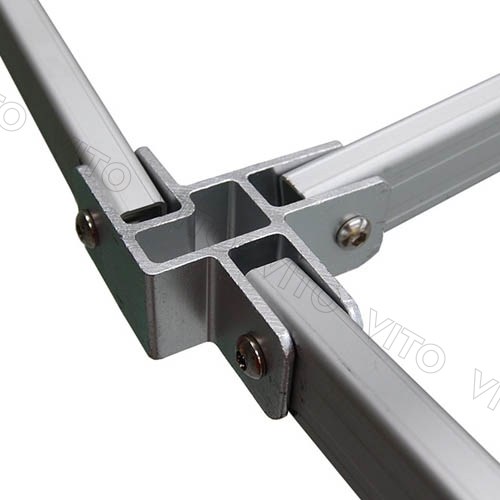

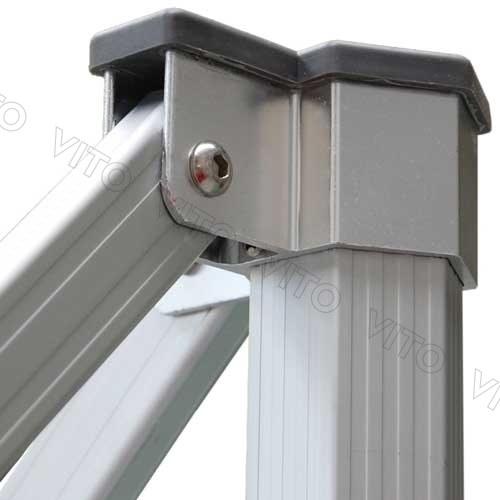

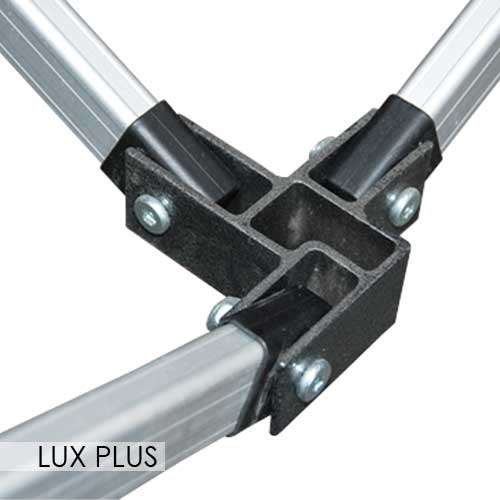

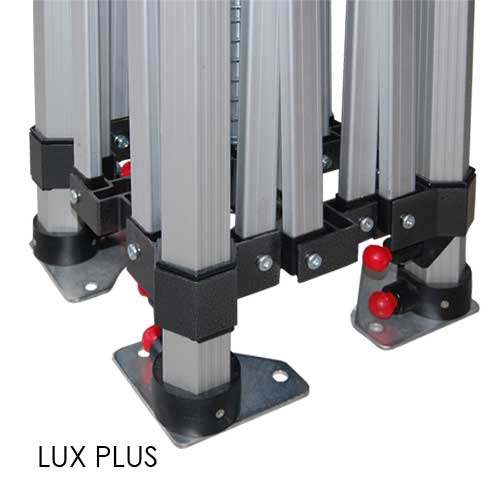

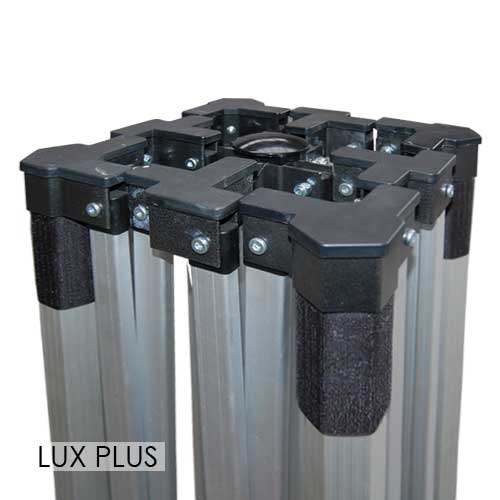

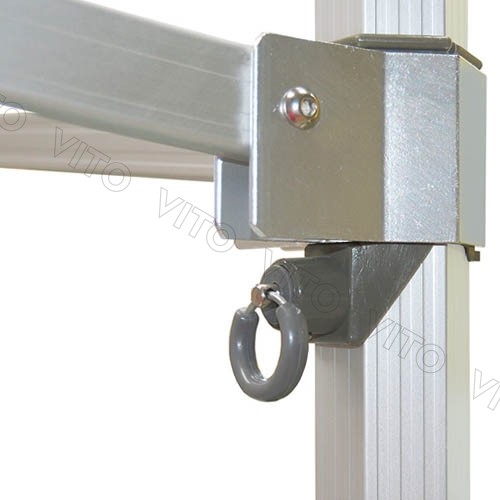

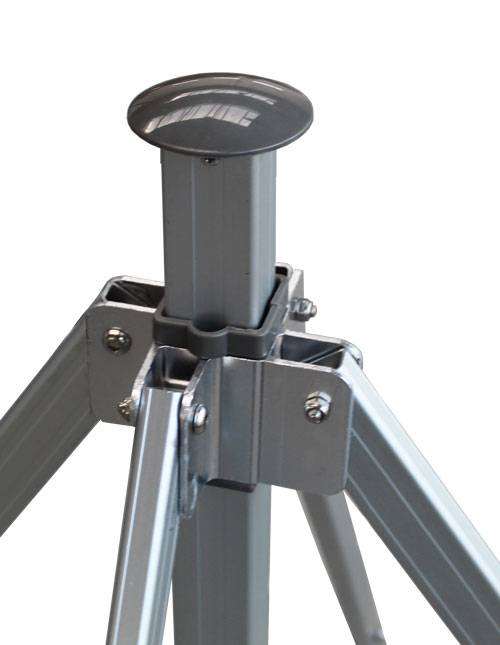

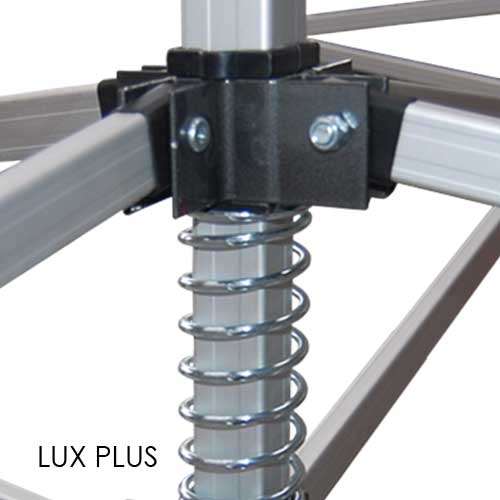

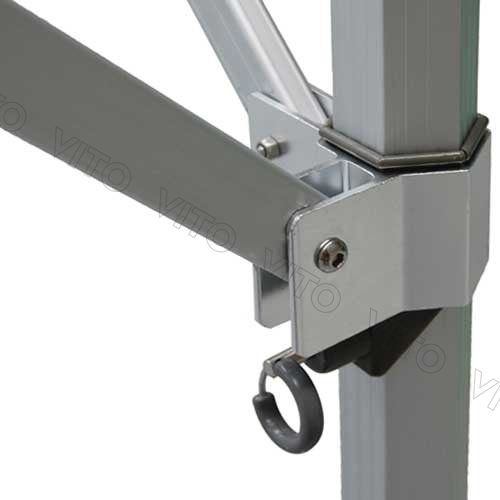

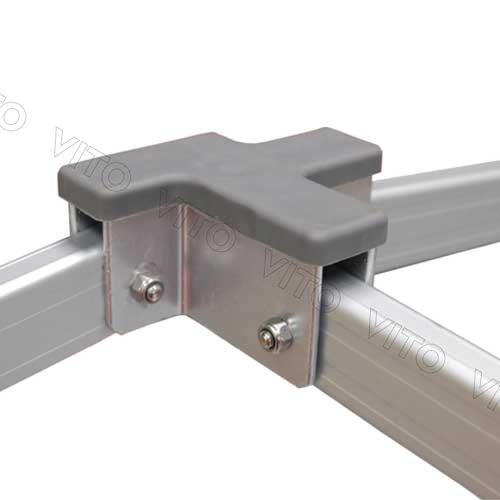

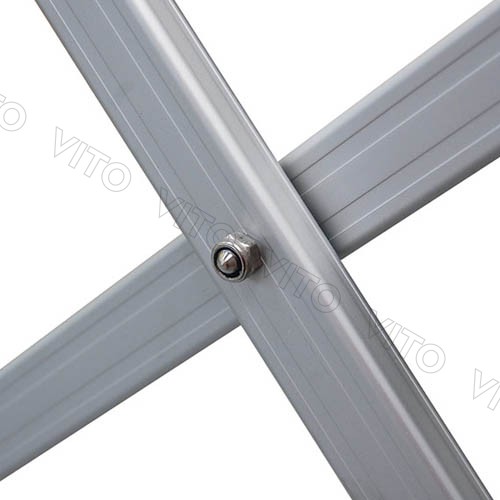

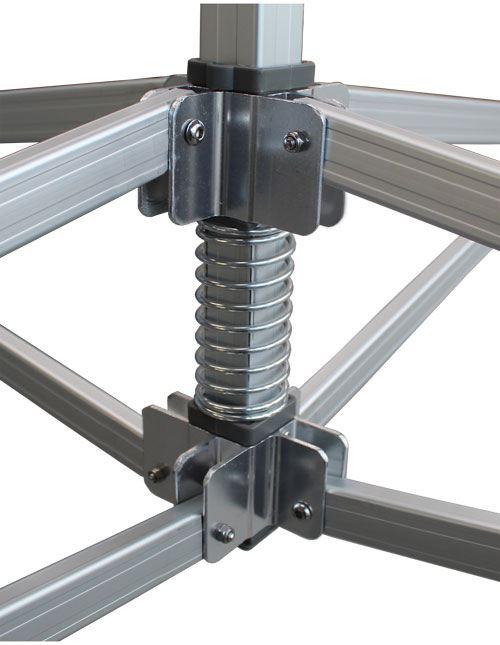

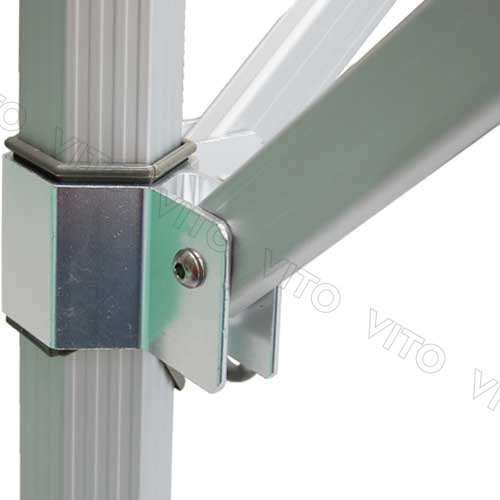

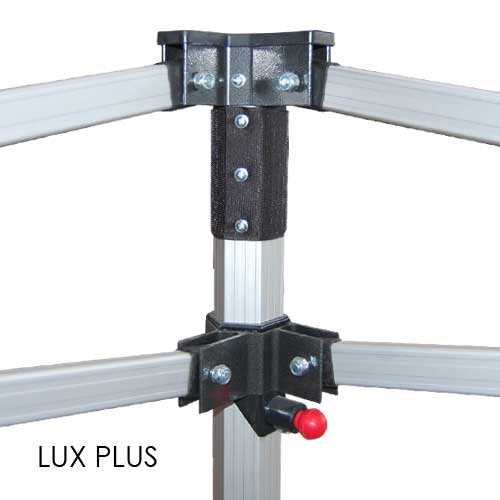

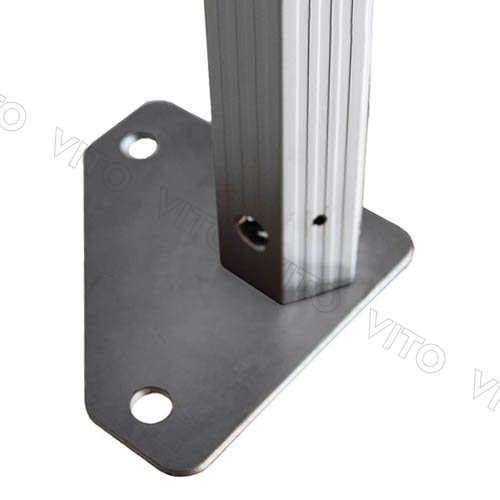

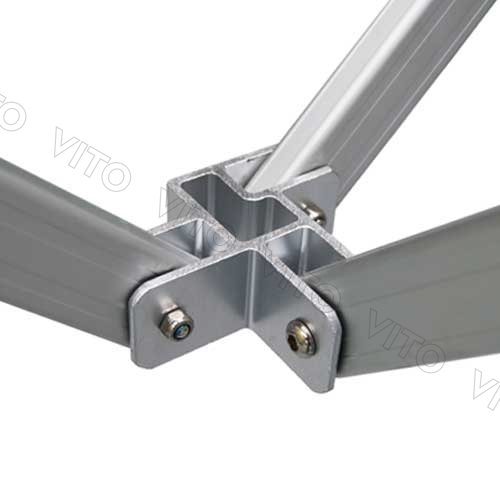

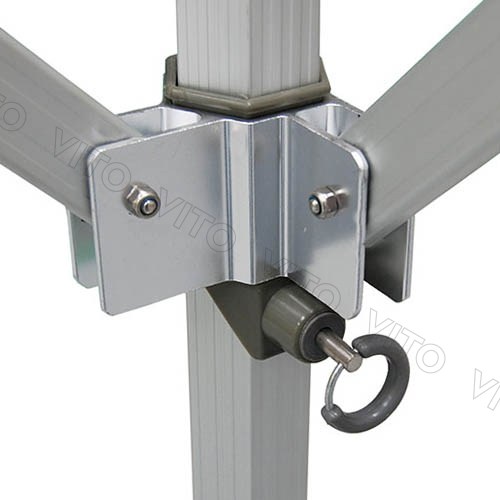

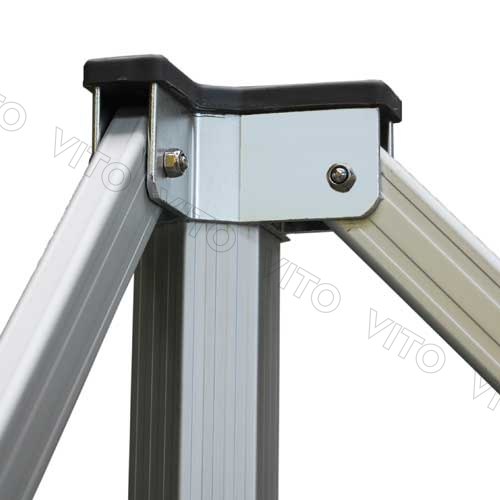

Frame elements
Due to their low weight, the express tents on the aluminium frame should be shielded from the wind. On our offer we also have all the necessary accessories.
Downloads
Specification
Manual picture version
Manual descriptive version
Remember not to leave the tent unattended and fold it in case of strong wind.
